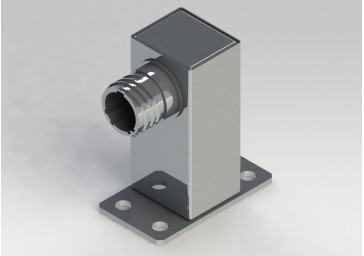

Unidirectional D38999 Connector Non-Latching Velocity Switch Assembly 6UO-1008
- 3D Model3d model
- Print Pageprint page
Description
The Model 6UO-1008 is a velocity sensor which is often used for missile safe arm and stage separation. Hermetically sealed with a nitrogen back fill this unit works reliably and accurate in any missile and space environment. Please contact our engineering department for more details.
-
Specifications
- Sensitivity: Unidirectional
- Contact Type: DPDT
- Contact Rating: 0.5A @ 28 VDC / 125 VAC
- Contact Resistance: Less than 0.5 ohm
- Insulation Resistance: 500 Mohms@500VDC
- Reset: Momentary, automatic reset
- G Range: 3 to 100
- Termination: Connector
- Seal: Hermetic 1 X 10-8 cc/sec
- Accuracy: 10%
- Damping: Damped
-
Special Features
- Highly Reliable and Accurate
- Fully qualified
- Hermetically sealed CAT5
- Back filled with inert atmosphere
- Redundant contacts
- Ideal for harsh enviroments
- Base plate for rigid mounting
- No power required
- EMI shielded
