D38999 4PDT Limit Switch Round 7LS-1005

Description

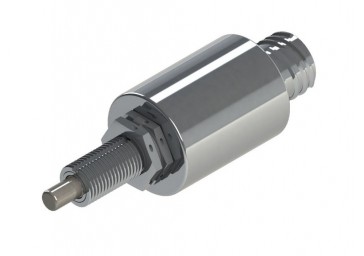

Our model 7LS-1005 is a four pole, double throw, round, straight D38999 connector terminated mechanical limit switch. Precision made, laser welded, stainless steel construction insures long life and high performance over extremely harsh environments. Please contact our engineering department with your exact specifications so we can ensure you have selected the correct model.

  • Specifications

    • Contact Type: 4PDT
    • Contact Rating: 7.5A @ 28 VDC / 125 VAC
    • Operating Temperature F: -55 to 250
    • Termination: Connector
    • Seal: Hermetic 1 X 10-6 cc/sec
    • Pretravel Max. inches: 0.040
    • Operating Force lbs: 4 to 10
    • Overtravel min inches: 0.250
    • Overtravel Force Max lbs: 30
    • Release Force Min lbs: 3
    • Coincidence Max inches: .010

  • Special Features

    • Highly reliable & accurate
    • Ice & FOD scraper
    • Excellent shock and vibration resistance
    • Precision beam welded
    • Silver contacts
    • D38999 glass to metal seal connector
    • Ideal for harsh environments
    • Stainless steel construction
    • Shielded EMI protection
    • No power required for operation
